OPX+
The new standard for Quantum control hardware and software
Run the experiments of your wildest
dreams
and get the most out of
your quantum hardware
Your experiments live in this Phase Space

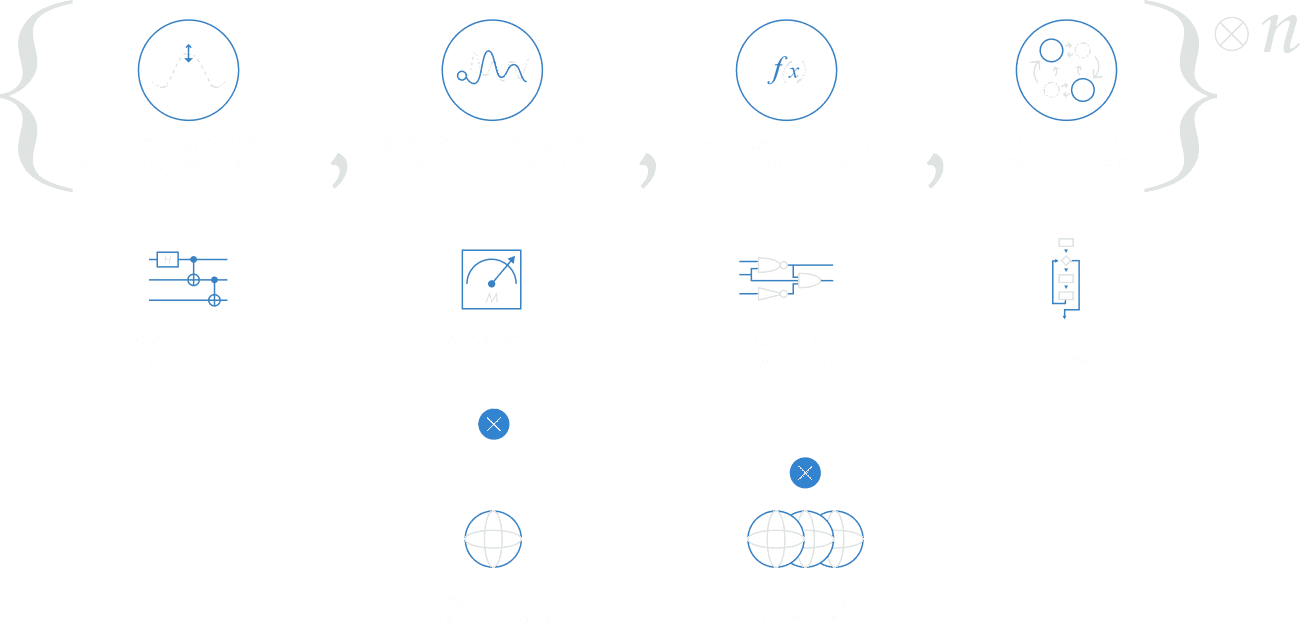

Phase Space
Combining pulses, measurements,
classical-processing, and control flow in various ways,
spans the phase space of your experiments
and algorithms
The OPX+ Covers
This Phase Space
- Easily express quantum algorithms and experimental protocols that comprise all of the above
- Seamlessly sync measurements, real-time calculations, and pulses of different quantum elements
- Loop over a wide range of parameters in real-time, including intermediate frequencies, amplitudes phases, delays, integration parameters, measurement axes, etc.
- Use if/else and case statements to condition operations in real-time (real-time feedback)
- Define procedures (macros) to be reused in the code and access an extensive family of libraries
OPX+ lets you do all these right
out of the box
Error Correction
Cat codes
Bayesian estimations
Image processing
Qubit-tracking / stabilization
AI-based calibrations
Hybrid quantum-classical
Adaptive sensing
Quantum benchmarking
Designed by Quantum Researchers for Scientists Like You
Replacing 3 devices with one synchronized, orchestrated machine tremendously simplifies lab workflow. Now, our pulse sequences run in a fraction of the time of any other device combo. Plus, we can talk to the FPGA in human-speak to run real-time calculations that were too complicated before! Along with the yoga-level flexibility of QM's engineers, the OPX truly is a trailblazer.
Dr. Amit Finkler, Weizmann Institute of Science
Dedicated hardware for controlling and operating quantum bits is something we have all been dreaming of. Quantum Machines has answered this call by allowing us and others in the field to scale up with ease and with far greater functionality than was ever possible
Prof. Amir Yacoby, Harvard University
I must say I'm very happy with QM's Quantum Orchestration Platform. It's the single most reliable piece of equipment I've got in the lab. I operate it remotely and never had any problems. I strongly recommend the OPX and the QOP to my colleagues. It is by far the simplest way to do qubit physics.
Dr. Emmanuel Flurin, CEA Saclay, Quantronics group
The first time I was introduced to Quantum Machines, It surprised me how people were getting so excited about it. Only later did I realize, it was like explaining the value of a Laser before it existed, and all you knew are light bulbs. Today I truly believe that these systems will revolutionize our space.
Prof. Barak Dayan, Weizmann Institute of Science
Having tried several instruments in the past, I'm very impressed by Quantum Machines' OPX. It finally removes the need for us to develop any skills in FPGA programming while still benefiting from advanced FPGA capabilities in our experiments
Prof. Benjamin Huard, ENS de Lyon
The OPX + QUA platform completely changed the way we control semiconductor quantum dot spin qubits. Key qubit control schemes we previously developed individually using time-consuming hardware description languages are now implemented in one box.
Dr. Dohun Kim, Seoul National University, Laboratory for Integrated Quantum Systems
Pulse Processor:
an Architecture Created for Quantum
Ideas
QUA
QM’s Python embedded programming language, QUA, frees you from hardware complications and the need to write complex VERILOG/VHDL code.
QUA describes quantum programs in a highly intuitive and straightforward way. Now, you can program quantum protocols as easily and naturally as writing pseudo-code
XQP Compiler
The Pulse Processor’s assembly language, known as the XQP compiler, compiles the programs after you write them in QUA.
The XQP Compiler is a highly compact assembly language that describes quantum programs through the information contained within them.
Communication Backplane

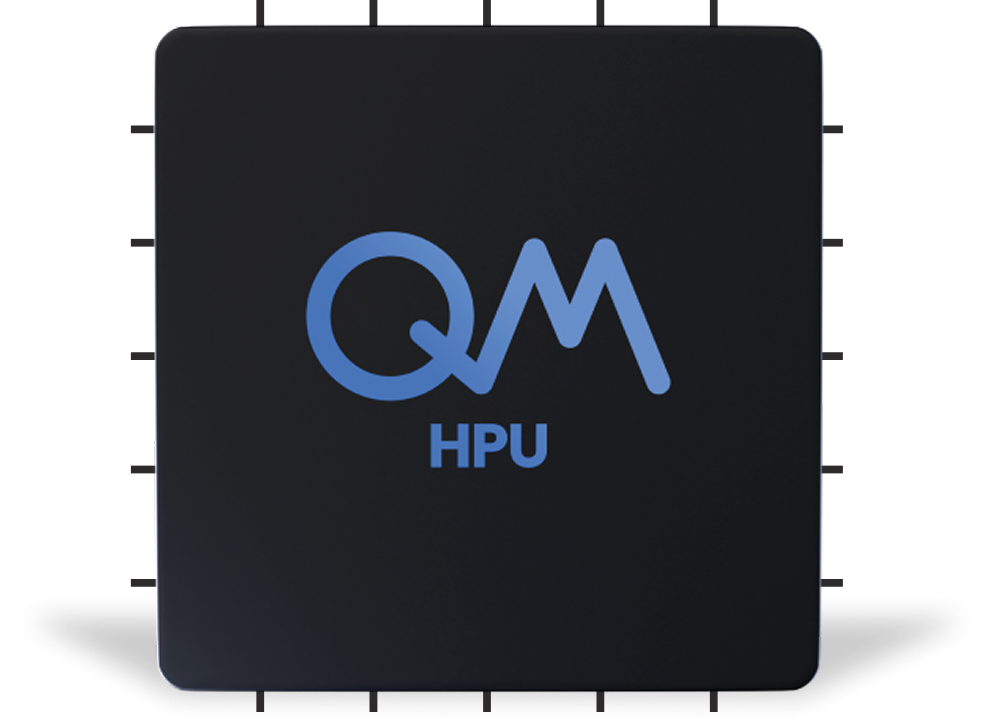

PULSE PROCESSOR AT THE OPX+ CORE (FPGA-BASED)
The FPGA-based Pulse Processor comprises multiple waveform generators, digitizers, and processing units. All integrated into a unique and scalable architecture.
The Pulse Processor can run even the most demanding quantum experiments in the most efficient way, with the lowest latencies possible. Including quantum protocols requiring real-time waveform generation, real-time waveform acquisition, and real-time comprehensive classical processing and control-flow.
RF Frontend
The RF-Frontend of the OPX+ addresses the demanding requirements for controlling and operating quantum devices. It includes the digital-to-analog converters (DACs) and analog-to-digital converters (ADCs).

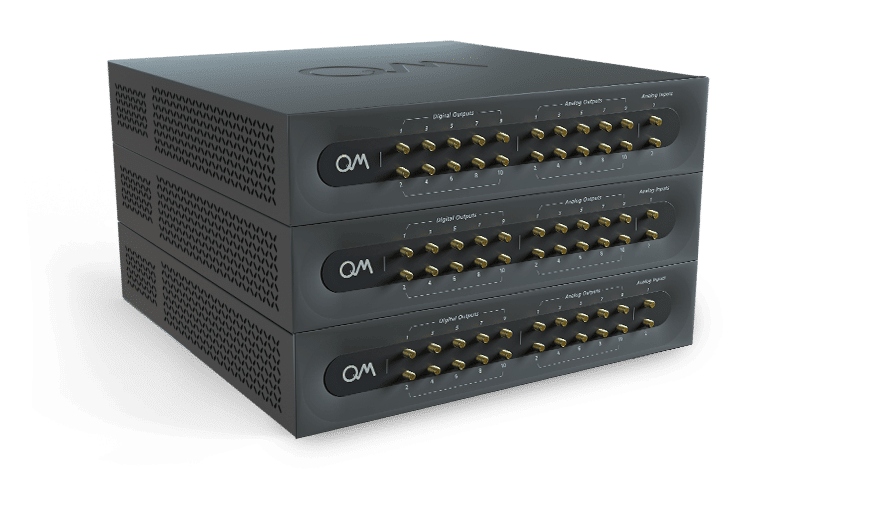

Modular System
The OPX+ is completely modular. Adapt it to your needs. Order any number of channels you require for your experiments. 4 or 10? You decide!
Digital Outputs
10 outputs seamlessly synced with any control protocol
Analog Outputs
10 output channels with advanced pulse shaping
and frequency multiplexing capabilities
Analog Inputs
2 input channels with easy-to- program frequency
demultiplexing and pulse analysis capabilities

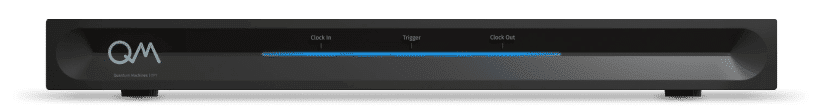

Operator-T (OPT) - Multi-OPX+ Synchronization
OPT is a clock distribution system capable of syncing multiple OPXs+. The OPT provides and distributes clocks and triggers, allowing you to have all OPXs+ and all components within them work with the same clock.
Works with All
Quantum Technologies
IONS
RESONATORS
QUBITS
NANOTUBES
From complex calibrations to real-time Bayesian estimates and ultra-low latency feedback-based protocols
Even your dream experiments can now run with ease
OPX+ meets the extremely demanding requirements of Quantum Control protocols head-on. Including Complexity, Timing, Precision, and Latency.
Run any experiment using the intuitive QUA language, the OPX+, and its dedicated Pulse Processor: a full stack designed from the ground up for quantum.
Speed up your quantum experiments by orders of magnitude!
Advanced OPX+ Use-Cases
protocols, including
quantum-error-correction
a system’s density matrix for
on-the-fly decision-making
pulse parameters, qubit frequency,
IQ-mixer’s imbalance, etc.
Challenge us! Tell us the quantum experiment of your wildest dreams. We’ll run it on the OPX+!
