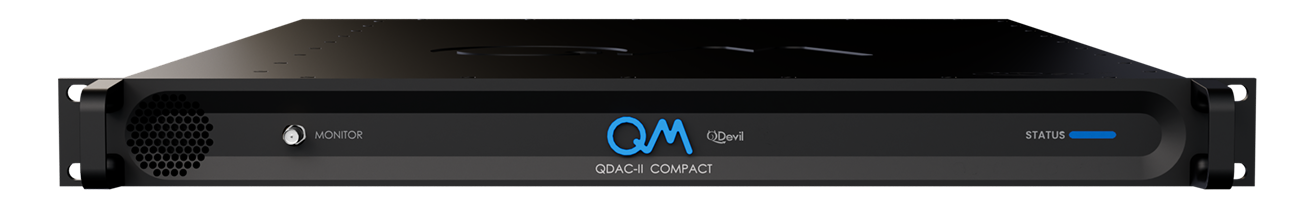

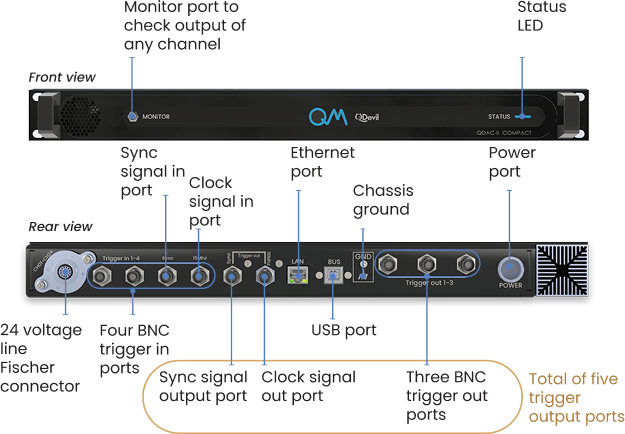

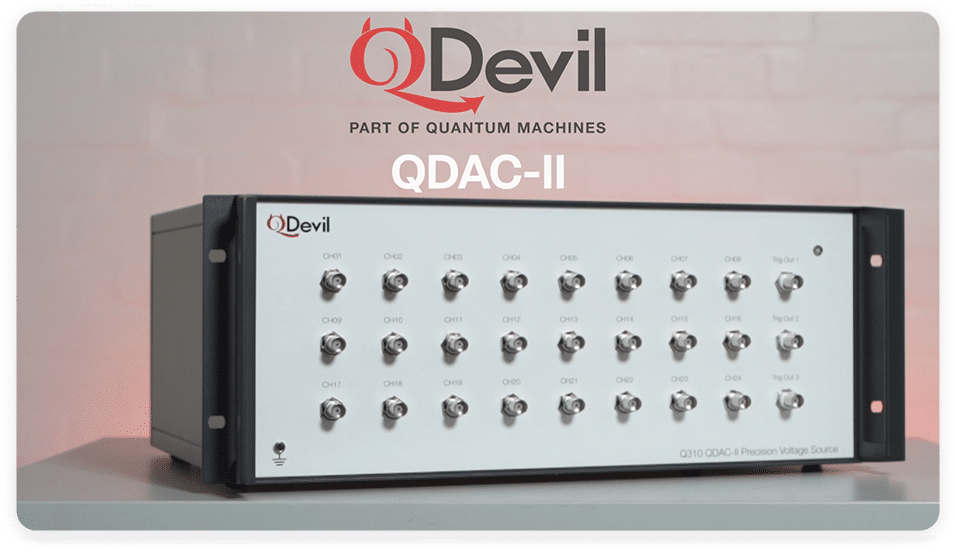

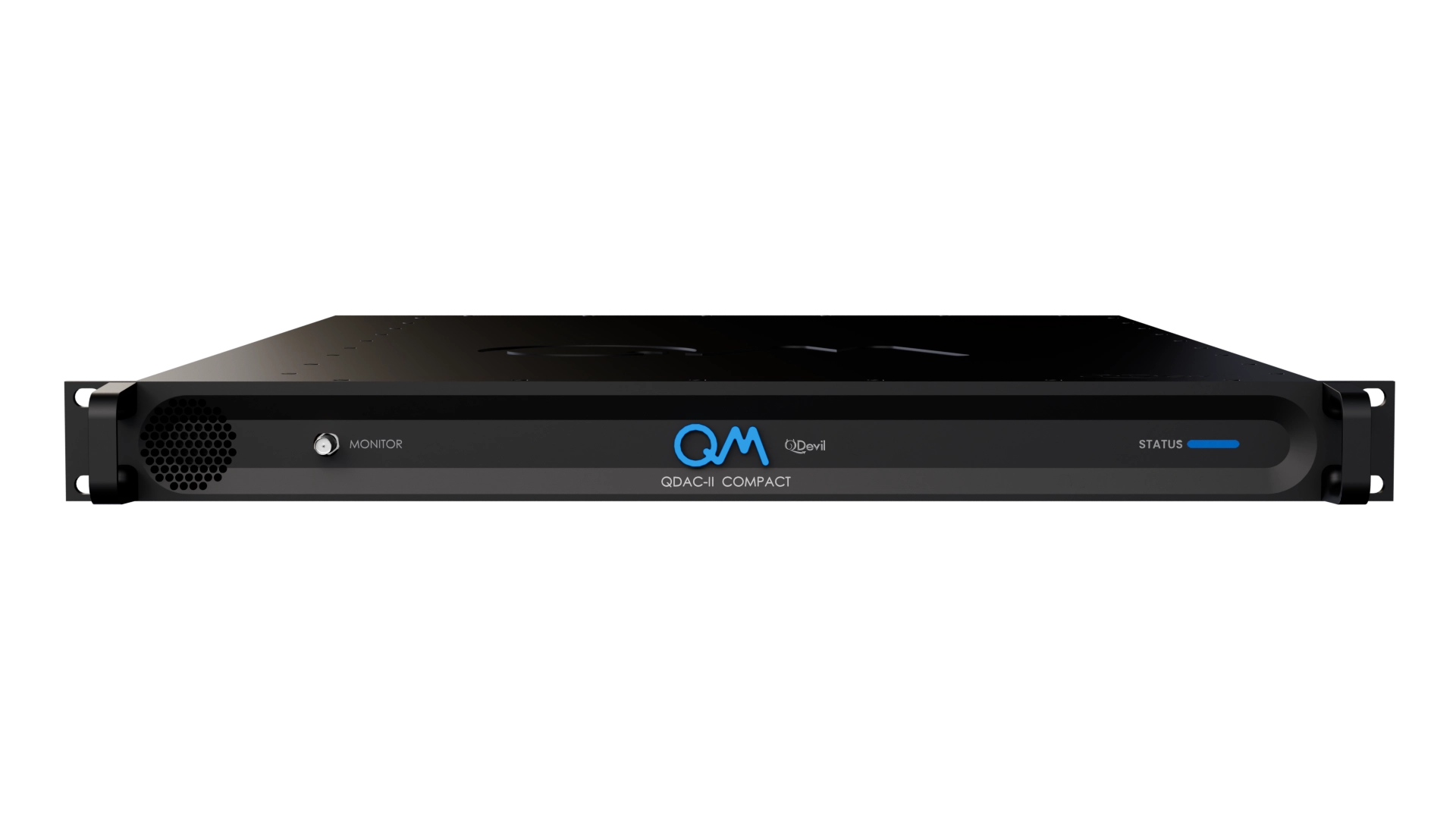

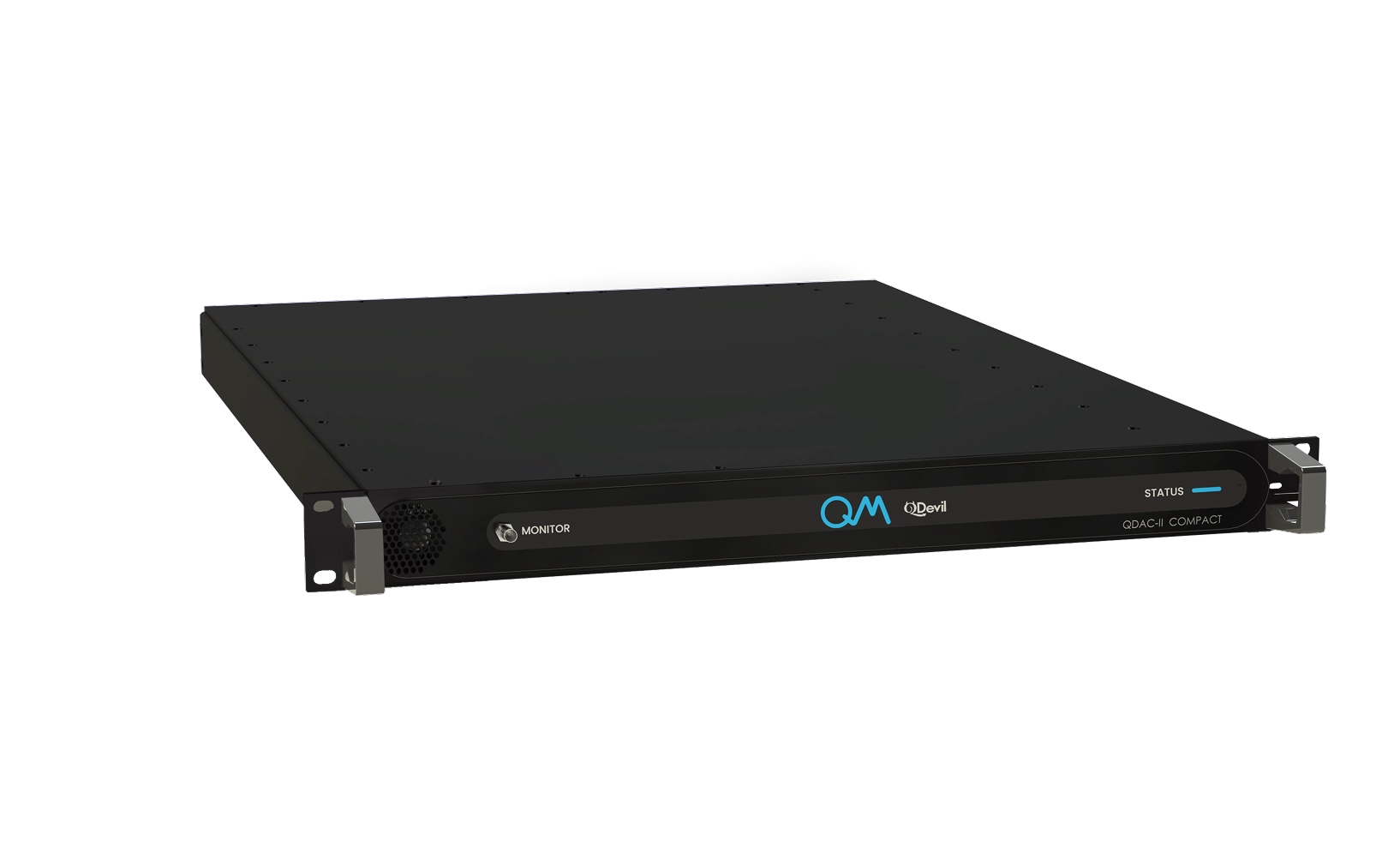

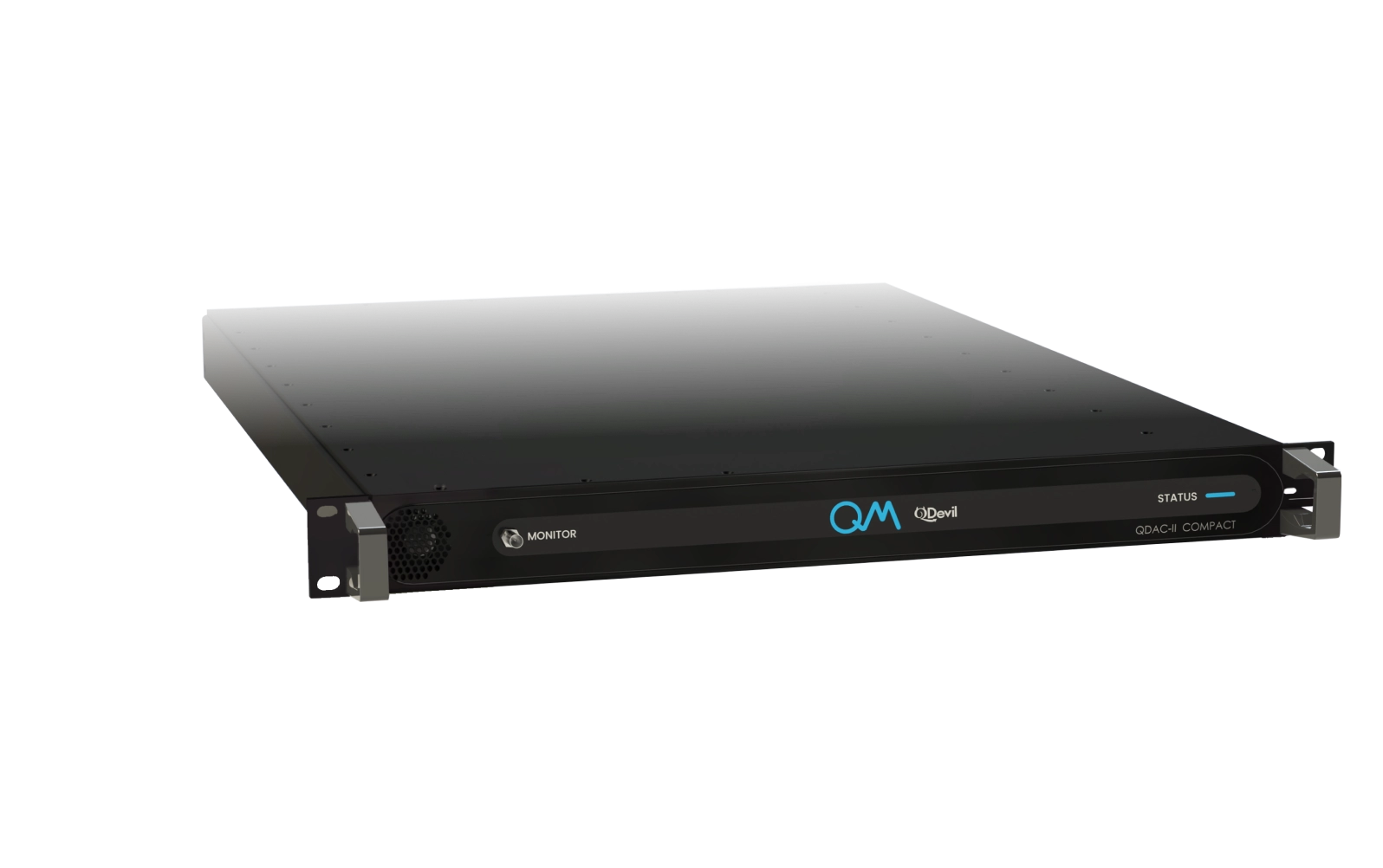

QDAC-II Compact is the reduced-size version of the best-selling QDAC-II, with all the same high-performance features in one rack unit. It is an extremely stable, low-noise, 24-channel voltage source to control quantum electronics and QPUs. Highly versatile, the Compact can be used for gate-leakage detection, fast tune-up algorithms, stable operation points, and numerous other applications – all via a single 24-pin Fischer output.
High-Performance Precision Voltage Generators
QDAC-II Compact is a high-precision, 25-bit resolution, ultra-low-noise DAC with 24 voltage channel generators with a 1 MS/s sample rate and a step size of <0.2 μV. Each of the 24 channels has five voltage generators working in parallel: DC, sine, triangle, square, and arbitrary waveform.
Fast Tune-Up and Operation Point Control
Performs fast multi-dimensional gate voltage sweeps using a 300 kHz output filter. Once at your operation point, the QDAC is switchable to an ultra-low noise DC voltage with a 10 Hz output filter and 25-bit resolution, with minimal transients.
Complete and Scalable Solution

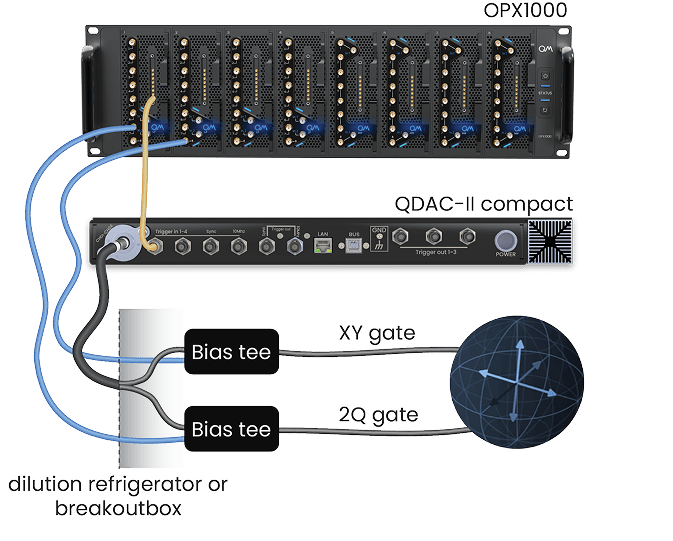

QDAC-II Compactis a versatile and easy-to-use solution. Controlled directly by SCPI commands with an endless number of applications, it can be stacked with multiple OPX1000 andQSwitchunits to operateas one advanced quantum control system.

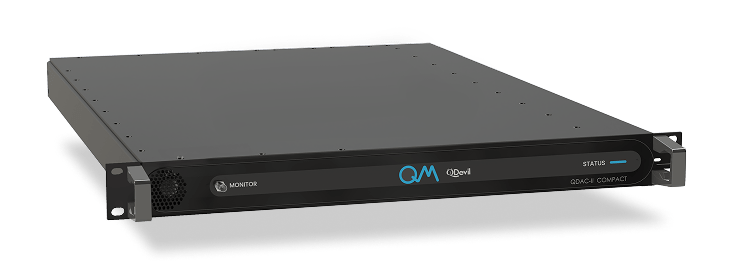

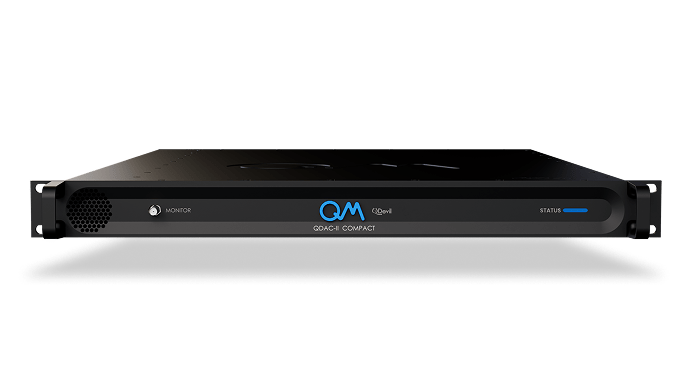

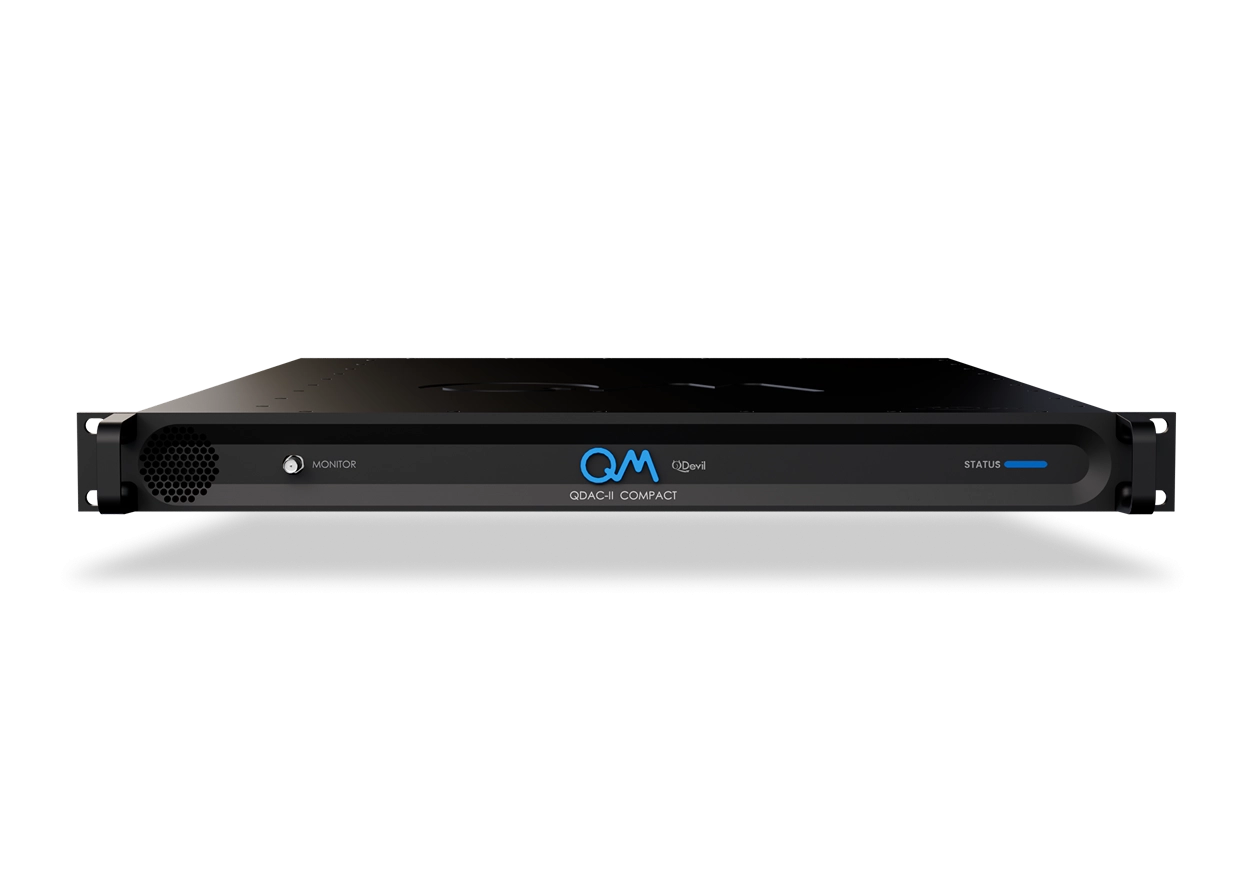

Ultra-low noise and ultra-stable 24-channel voltage source in one rack unit
Unique low pass filter with 3 ranges that can be switched between with minimal transients: cut-off 300 KHz, cut-off 10 KHz, and cut-off 10 Hz
25-bit resolution in DC mode (10 Hz cut-off), 20-bit in medium and high bandwidth mode (10 kHz and 300 kHz cut-off)
One million samples per second per channel
Each channel has multiple standard waveform generators and an arbitrary waveform generator
Individual high-resolution low-frequency current sensors on every channel, measuring current simultaneously on all channels
Advanced triggering and synchronization functions between channels with sub-microsecond precision
Why Leading Experts
Worldwide Choose
Quantum Machines
Disentangling Losses in Tantalum Superconducting Circuits
“QM’s chip packaging solutions are exquisite pieces of engineering that have enhanced our resonator Q-factors to as much as 200 million. It is clearly a very highly engineered product that I’m sure will be widely adopted in the field.”
PhD Student, Kevin D Crowley
Houck Lab, Princeton University
Most flexible and user-friendly system in our lab
"OPX played a crucial role in our advanced quantum experiments. This platform is the most flexible and user-friendly system in our lab. It saved us a significant amount of time, enabling us to concentrate on quantum science and make progress much faster compared to writing our own code. Furthermore, the Quantum Machines customer success team has been extremely helpful in addressing our needs and maximizing the solution's full potential."
Prof. Johannes Fink
Institute of Science and Technology Austria
Q-factors as high as 200 million
“QM's chip packaging solutions are exquisite pieces of engineering that have enhanced our resonator Q-factors to as much as 200 million. It is clearly a very highly engineered product that I am sure will be widely adopted in our field.”
Kevin Crowley
Houck Lab, Princeton University
OPX and QDAC to streamline lab processes
“Efficiently controlling multiple frequency-tunable transmon qubits can be achieved with QM's OPX and QDevil's QDAC. QDAC's high-precision and low-noise bias voltage ensures accurate qubit frequency control without compromising coherence times, while QM's OPX offers advanced control solutions that are user-friendly and require minimal technical expertise. I highly recommend using OPX and QDAC together to streamline your lab processes and advance your quantum computing research.”
“Integrating the control of the lab into a single unit made my research experience much easier. I can honestly say it is thanks to Quantum Machines’ well-engineered hardware and their team's true willingness to assist.”
Ben Yemin
Ozeri Lab, Weizmann Institute of Science
The dedicated hardware we have been dreaming of
“Dedicated hardware for controlling and operating quantum bits is something we have all been dreaming of. Quantum Machines has answered this call by allowing us and others in the field to scale up with ease and with far greater functionality than was ever possible before.”
Prof. Amir Yacoby
Harvard University
Why Leading Experts
Worldwide Choose
Quantum Machines
Disentangling Losses in Tantalum Superconducting Circuits
“QM’s chip packaging solutions are exquisite pieces of engineering that have enhanced our resonator Q-factors to as much as 200 million. It is clearly a very highly engineered product that I’m sure will be widely adopted in the field.”
PhD Student, Kevin D Crowley
Houck Lab, Princeton University
Most flexible and user-friendly system in our lab
"OPX played a crucial role in our advanced quantum experiments. This platform is the most flexible and user-friendly system in our lab. It saved us a significant amount of time, enabling us to concentrate on quantum science and make progress much faster compared to writing our own code. Furthermore, the Quantum Machines customer success team has been extremely helpful in addressing our needs and maximizing the solution's full potential."
Prof. Johannes Fink
Institute of Science and Technology Austria
Q-factors as high as 200 million
“QM's chip packaging solutions are exquisite pieces of engineering that have enhanced our resonator Q-factors to as much as 200 million. It is clearly a very highly engineered product that I am sure will be widely adopted in our field.”
Kevin Crowley
Houck Lab, Princeton University
OPX and QDAC to streamline lab processes
“Efficiently controlling multiple frequency-tunable transmon qubits can be achieved with QM's OPX and QDevil's QDAC. QDAC's high-precision and low-noise bias voltage ensures accurate qubit frequency control without compromising coherence times, while QM's OPX offers advanced control solutions that are user-friendly and require minimal technical expertise. I highly recommend using OPX and QDAC together to streamline your lab processes and advance your quantum computing research.”
“Integrating the control of the lab into a single unit made my research experience much easier. I can honestly say it is thanks to Quantum Machines’ well-engineered hardware and their team's true willingness to assist.”
Ben Yemin
Ozeri Lab, Weizmann Institute of Science
The dedicated hardware we have been dreaming of
“Dedicated hardware for controlling and operating quantum bits is something we have all been dreaming of. Quantum Machines has answered this call by allowing us and others in the field to scale up with ease and with far greater functionality than was ever possible before.”
Prof. Amir Yacoby
Harvard University
Disentangling Losses in Tantalum Superconducting Circuits
Most flexible and user-friendly system in our lab
Q-factors as high as 200 million
OPX and QDAC to streamline lab processes
Integrating control into a single unit
The dedicated hardware we have been dreaming of
Benefits
Optimal Signal Quality
Ultra-stable voltage source delivering ultra-low noise, minimal crosstalk, and minimal transients for reliable qubit operation.
Compact and Versatile
24 DC voltage sources (±10 V) with built-in current sensing and individual sub-MHz function generators, all in one rack unit, reducing the need for additional instruments.
Timesaving
Multi-dimensional gate electrode sweeps are performed in less than a second. The advanced triggering system allows the coordination of signals internally or externally with sub-μs precision.
Easy to Use
Controlled directly by SCPI commands or from Python or QCoDeS. Example Jupyter notebooks are provided.Includes flexible, low-noise cable assembly and setup instructions to implement your experiment scripts within minutes.
